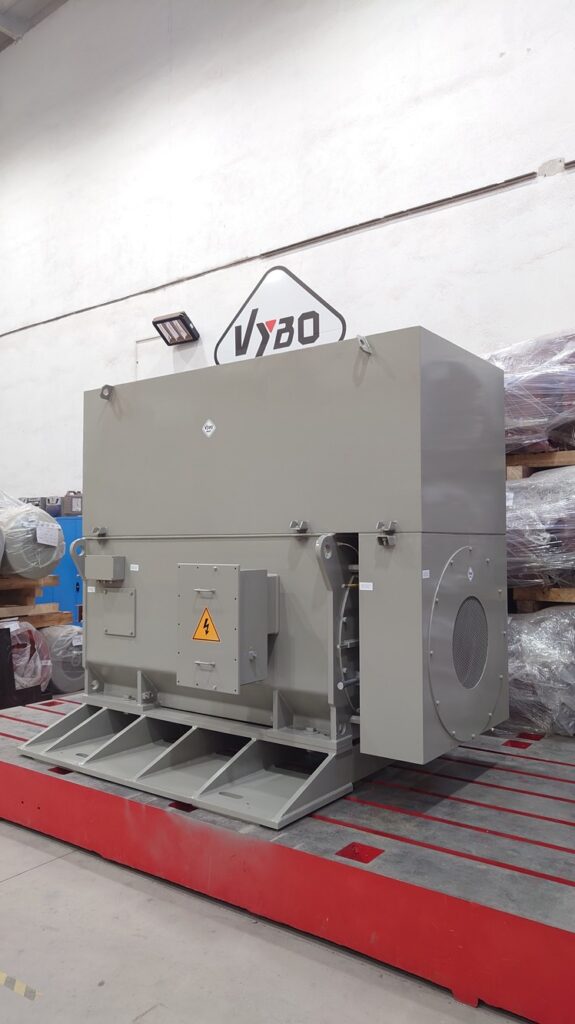

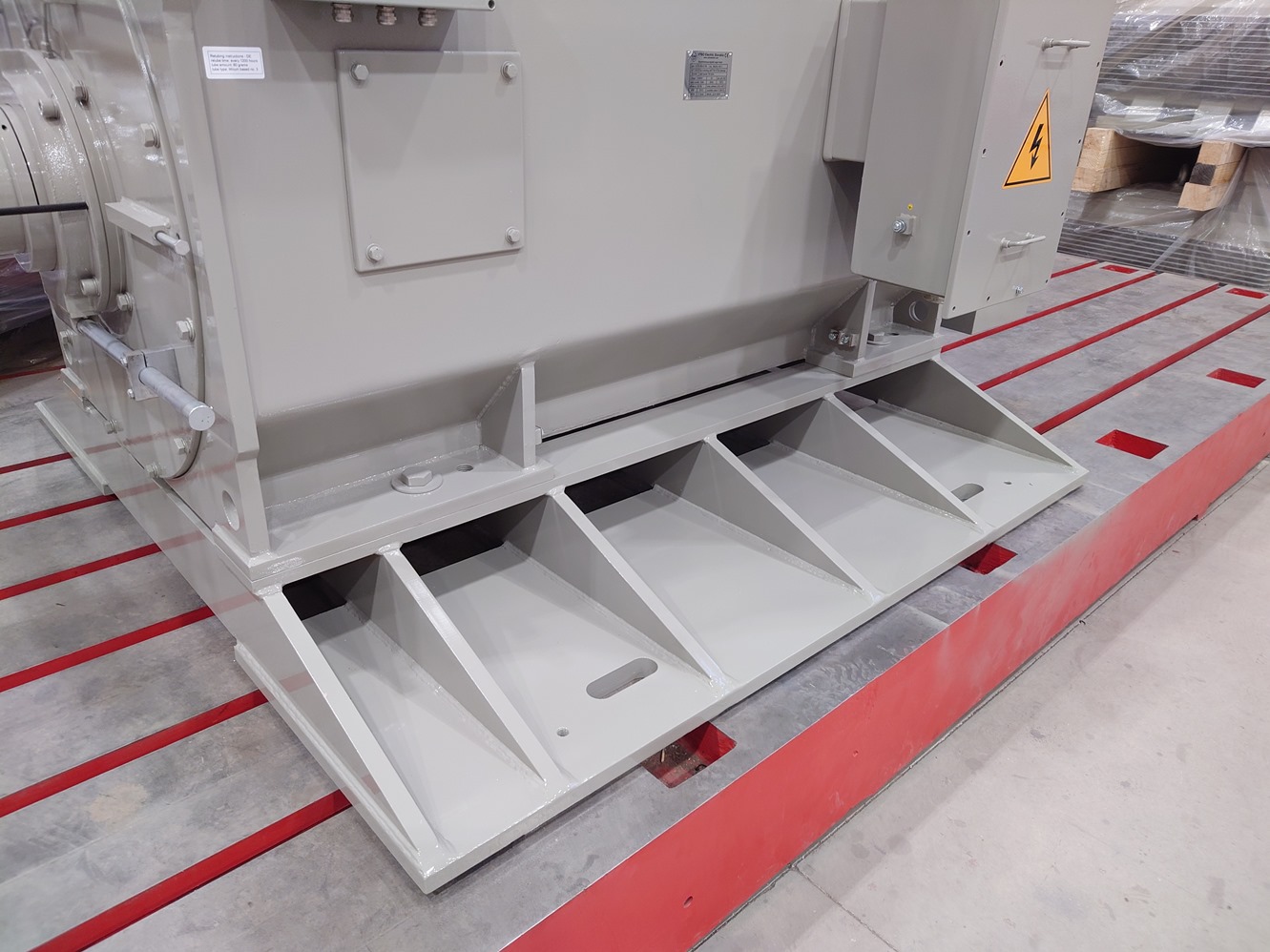

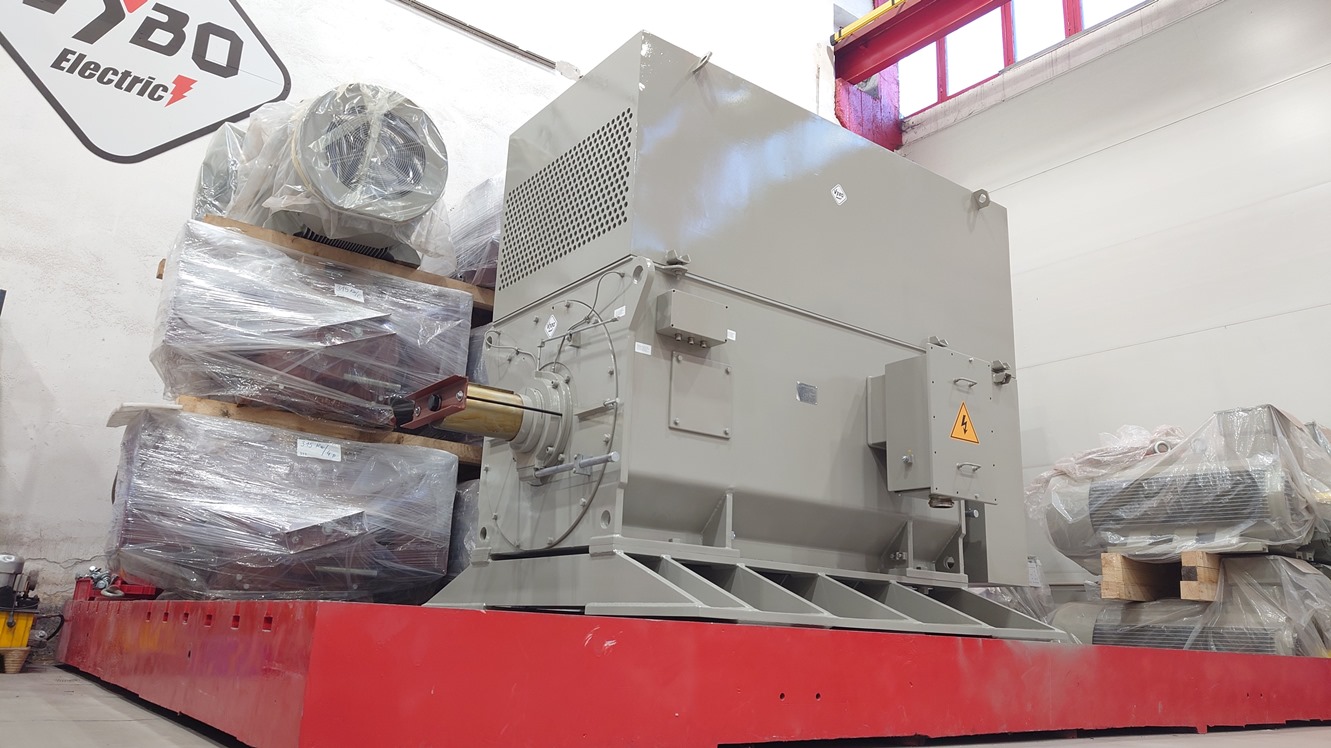

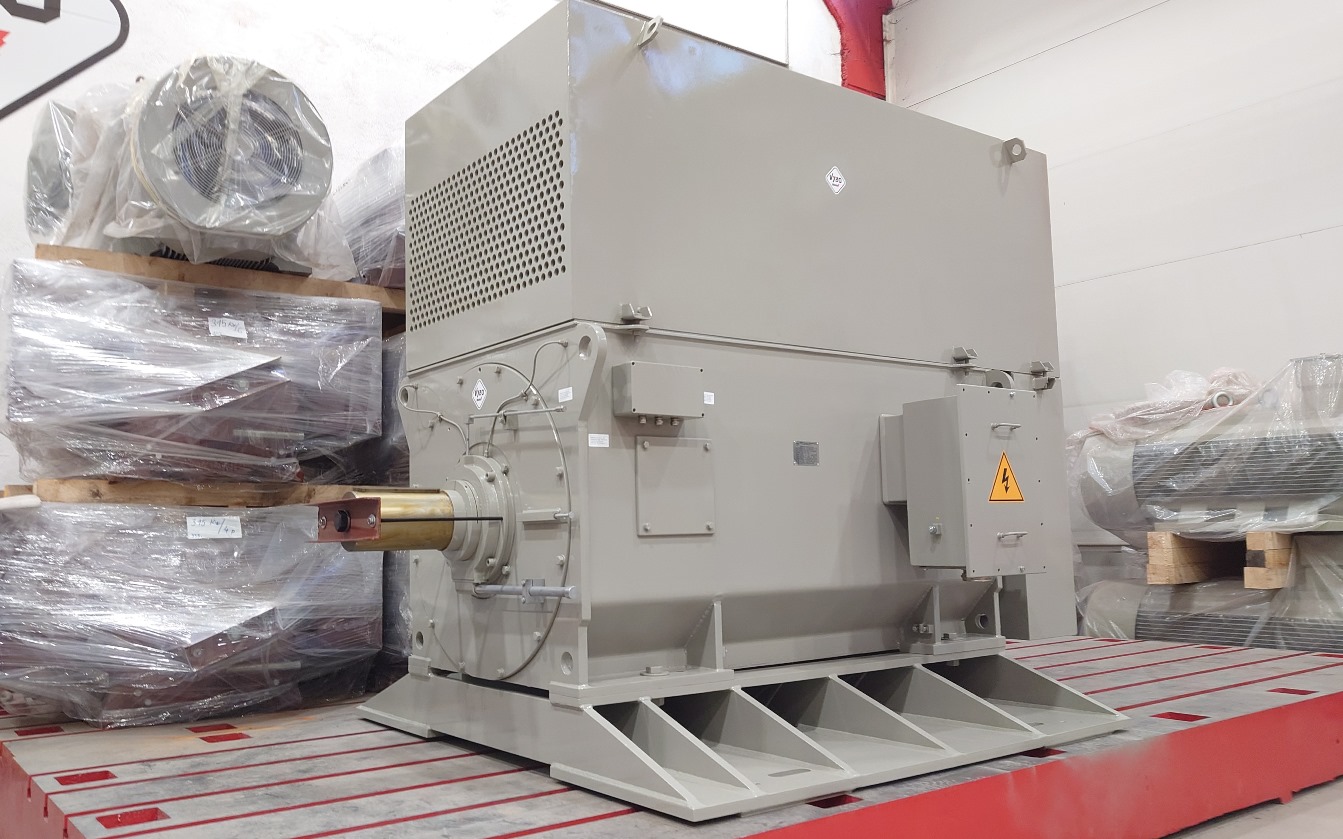

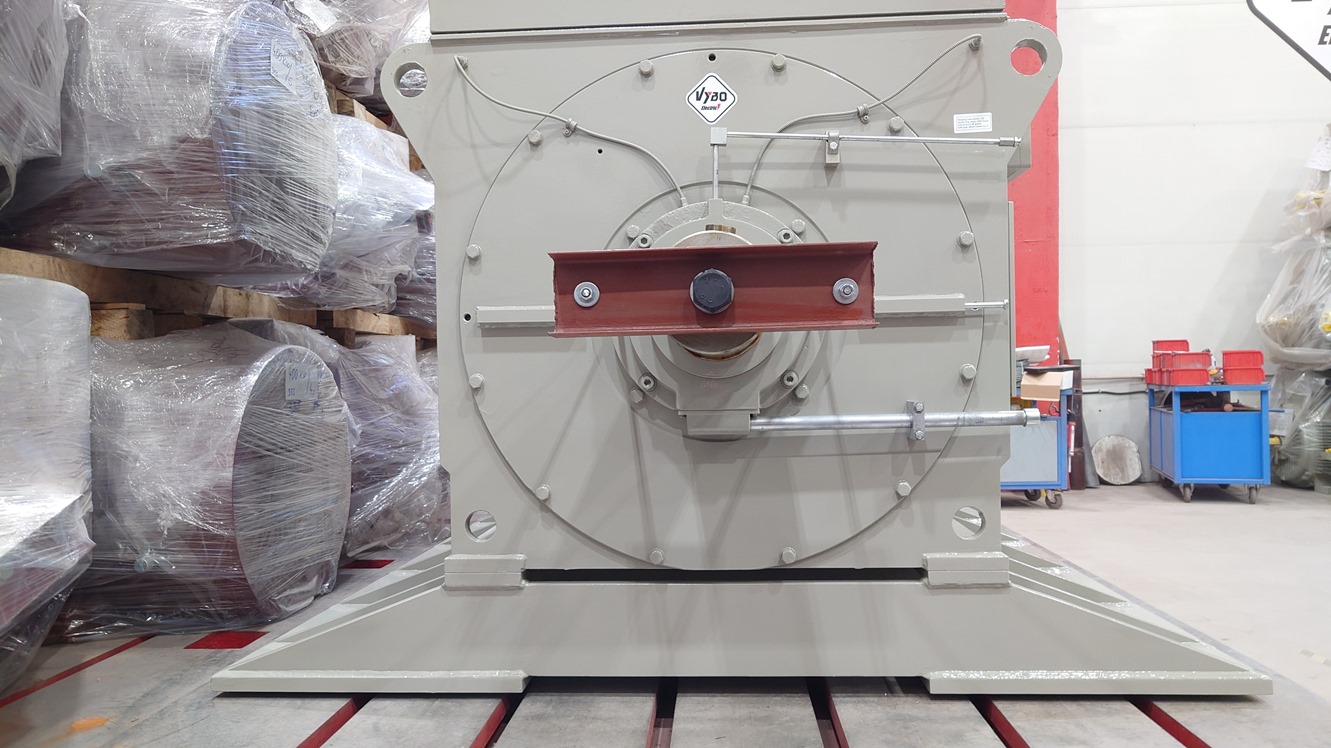

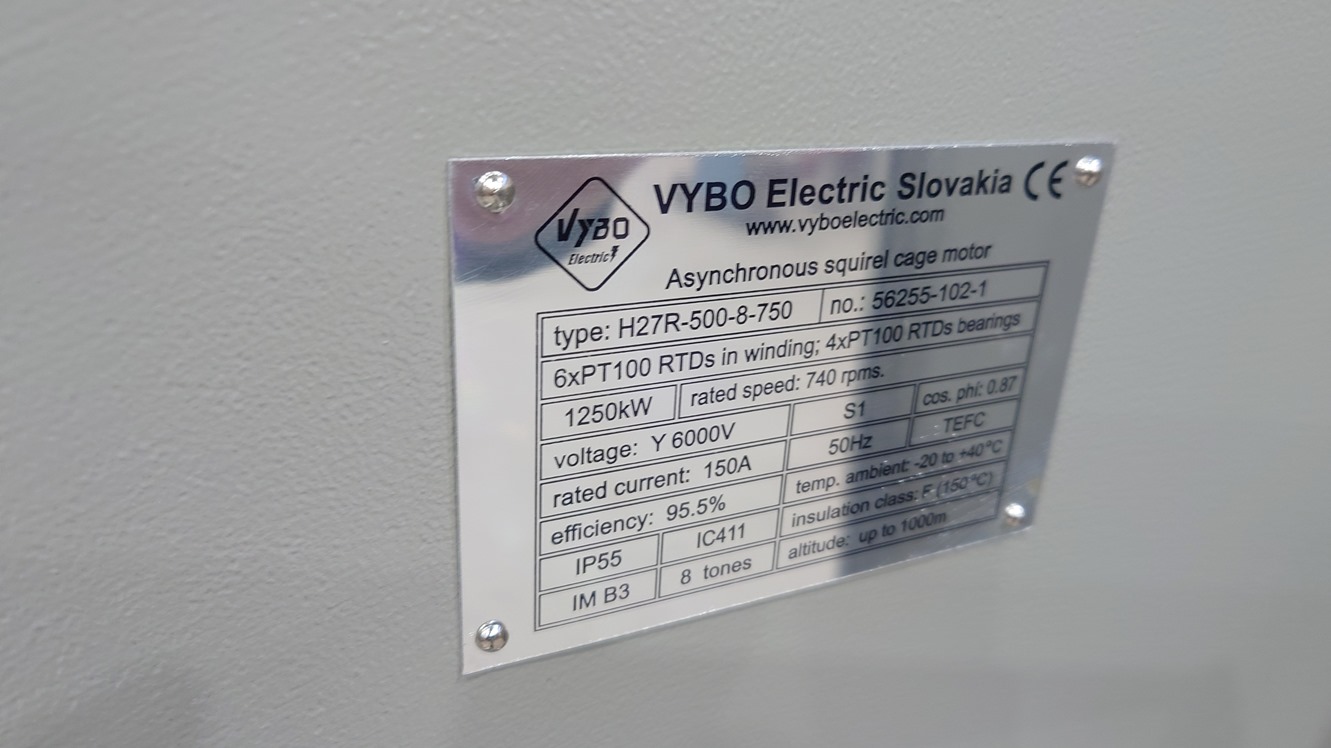

Medium voltage motor with copper bar rotor H27R-500/630-8 1250kW for black coal mill

VYBO Electric motor 1250kw 6000V
VYBO Electric motor type Asynchronous electric motor H27R-500/630-8
Type of application black coal mill
Rated power 1250 kW
Rated voltage 6000 V
Number of poles 8 poles
Rated speed 740 rpm
Rated frequency 50 Hz
Construction welded steel
Frame size / Shaft height 500/630 mm
Protection class IP55
Cooling type IC611
Motor standard IEC / EN 60034-1
Weight 8000 kg
