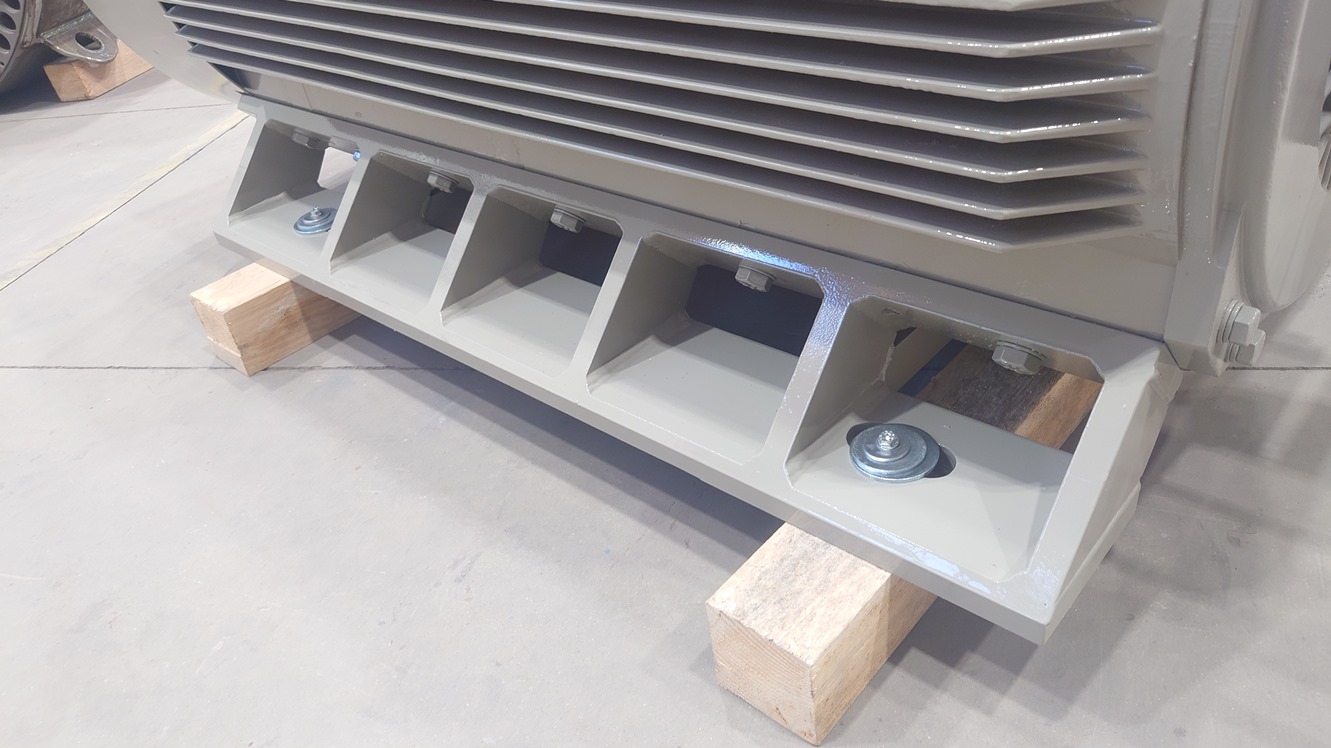

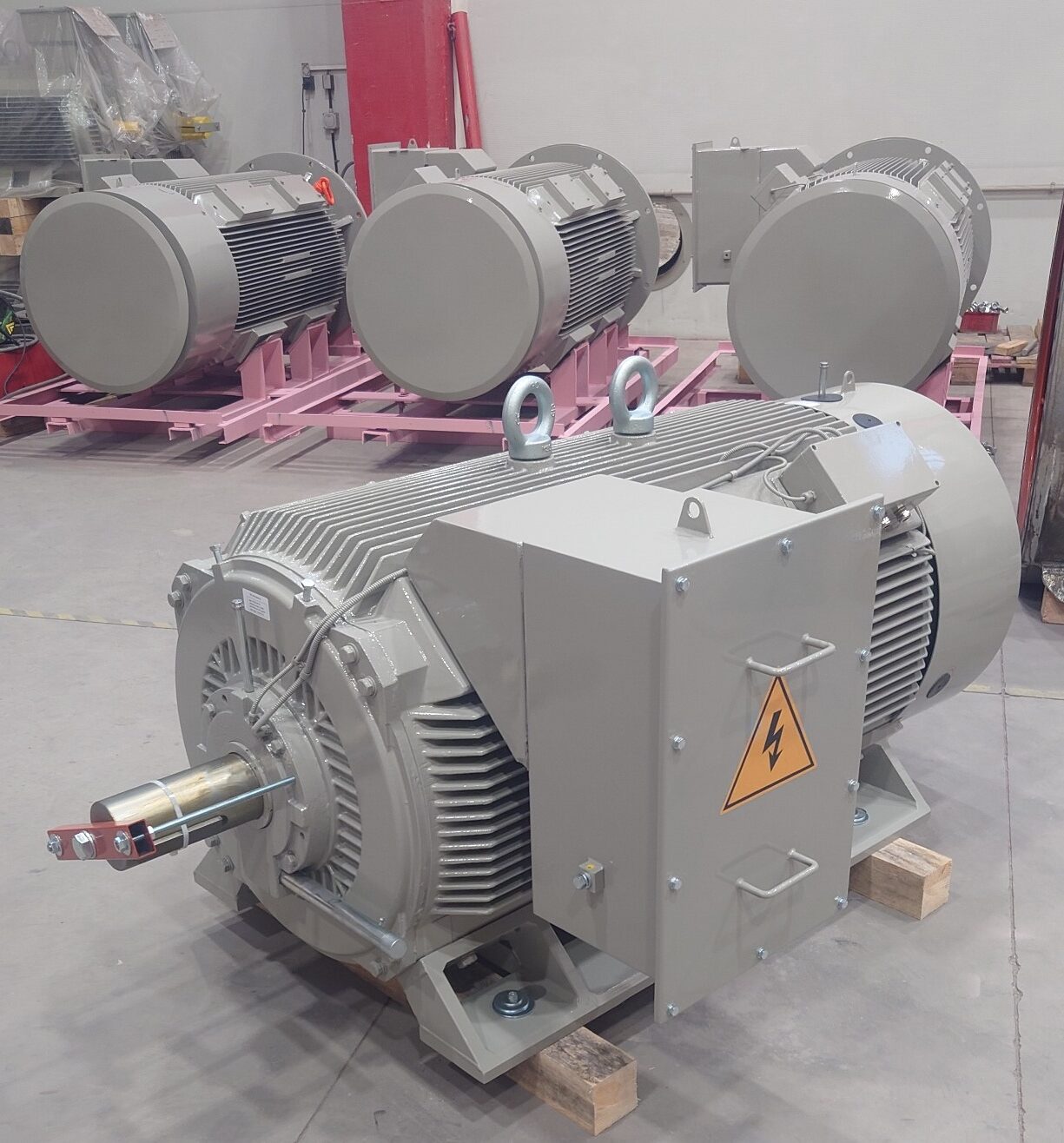

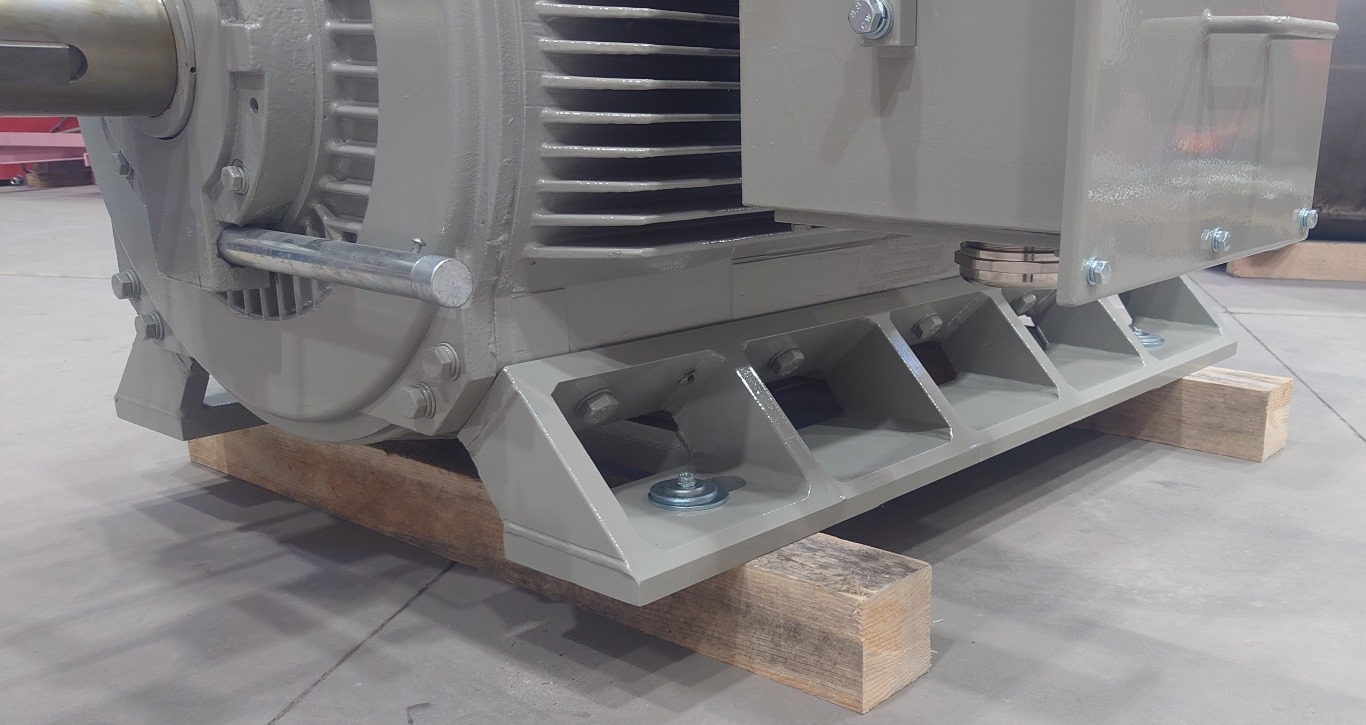

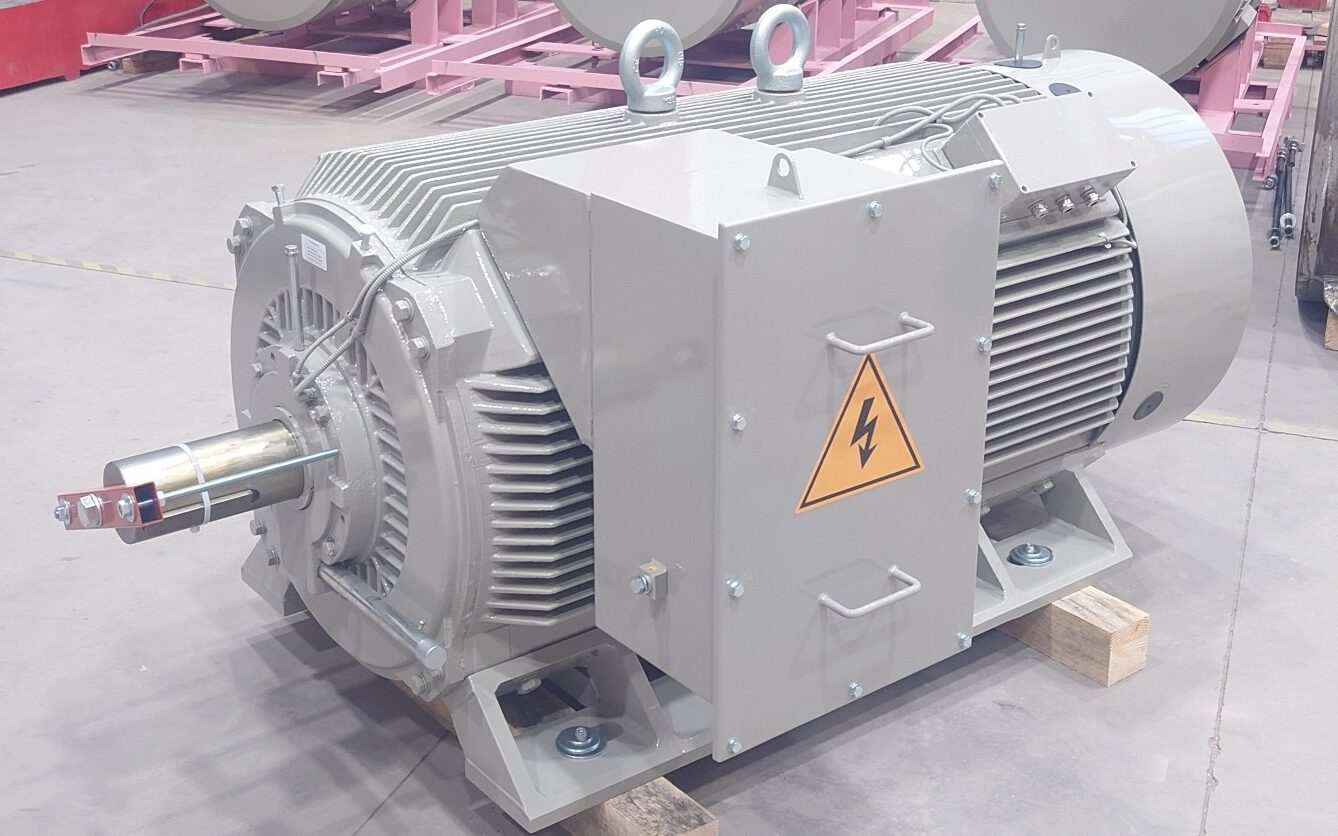

Medium voltage motor with special frame H17R-400SP-4 450kW for pump

VYBO Electric motor 400SX
VYBO Electric motor type Asynchronous electric motor H17R-400SP-4
Type of application pump
Rated power 450 kW
Rated voltage 6000 V
Number of poles 4 poles
Rated speed 1490 rpm
Rated frequency 50 Hz
Construction cast iron + welded steel
Frame size / Shaft height 400 mm
Protection class IP55
Cooling type IC411
Motor standard IEC / EN 60034-1
Weight 2900kg
