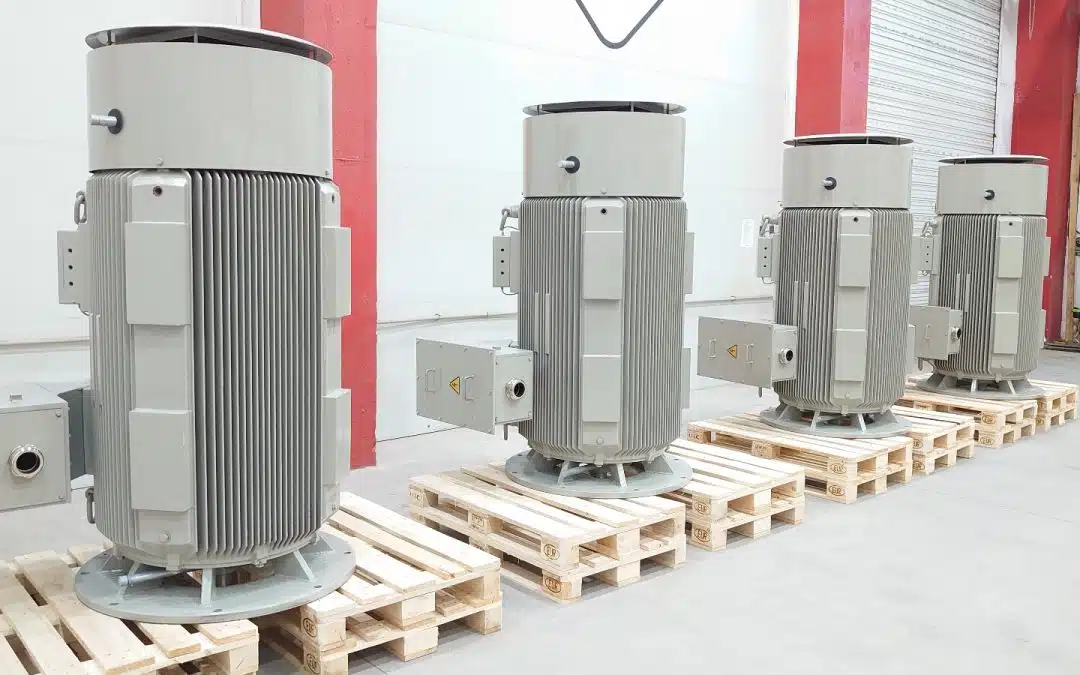

12pcs Vertical ultra high efficiency electric motor 500kW with double angular bearings

high voltage 4 poles electric motor
VYBO Electric motor type Asynchronous electric motor H17R-355-04-CR
Country Slovenia
Type of application Pumps
Rated power 500 kW
Rated voltage 6000V
Number of poles 4 pole
Rated speed 1487 rpm
Rated frequency 50Hz
Construction IM V1+double angular bearings
Frame size / Shaft height 355 mm
Protection class IP55
Cooling type IC411
Motor standard IEC / EN 60034-1
Weight 3200kg
Insulation class F
Special execution Double angular bearings for very high axial pump pressures,copper bar rotors,very high efficiency
Quantity 12 pcs
